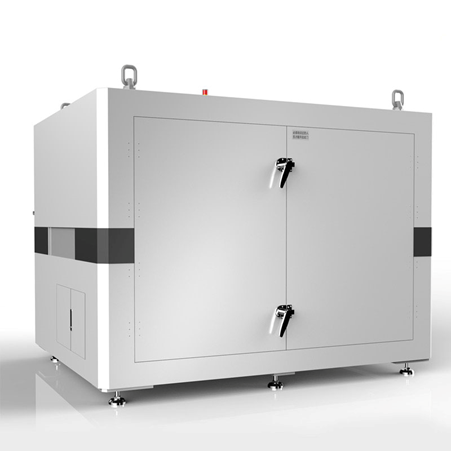

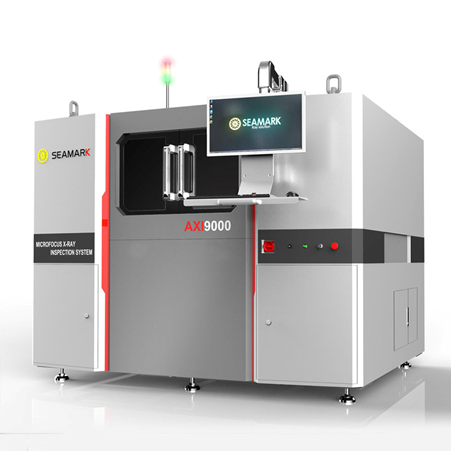

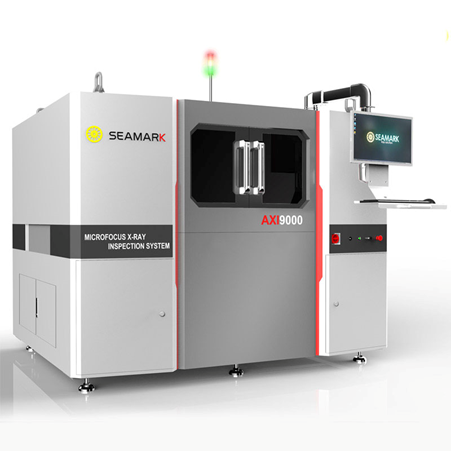

AXI9000

PCBA high speed real time online full inspection

Please contact us for a price estimation.

AXI 9000 realizes the 3 D/CT online full inspection function The inspection objects include BGA, QFP, SOP, CSP, CHIP, QFN, plug in components, power modules and other components It can check missing parts, misalignment s hort bridge open, insufficient solder bubbles, and head in pillow effect (choose according to the inspection object)

Request Price

Bare Board Inspection

Bare Board Size 50× 50 ~ 610 × 510mm
CT Resolution 5-50um /pixel (optional)
Bare Board Thickness 0.5mm-10mm
Bare Board Height ≦40mm

X-Ray Tube Specification

Type Reflective sealed micro-focus ray source
Voltage Range 40-130 KV
Operating Current Range 10-300µA
Max Output Power 39W

Flat Panel Detector Specification

Type Amorphous silicon flat panel detector (optional)
Pixel Matrix 1536 × 1536
Field of View 130mm × 130 mm
Resolution 5.8Lp/mm
Frame（1×1) 20fps
A/D Conversion Bit 16bits

Equipment Performance Specifications

Dimensions L2400mm × W2000mm × H2000mm
Input Power 220V 10A/110V 15A 50-60HZ
Atmospheric Pressure 0.45 ~ 0.65MPa
Control System DELL Precision T5820 graphics workstation
Net Weight Approx 6800KG
X-ray Leakage < 0.5 μSv/hr
