ZM-R730A

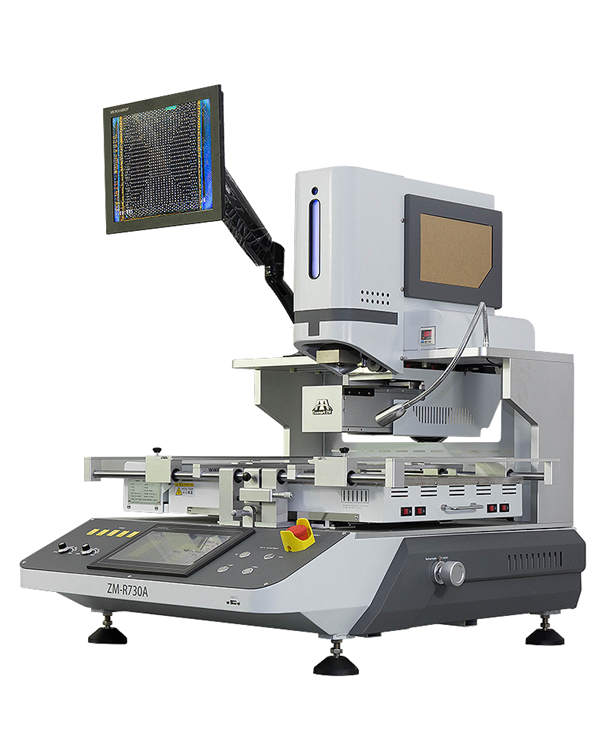

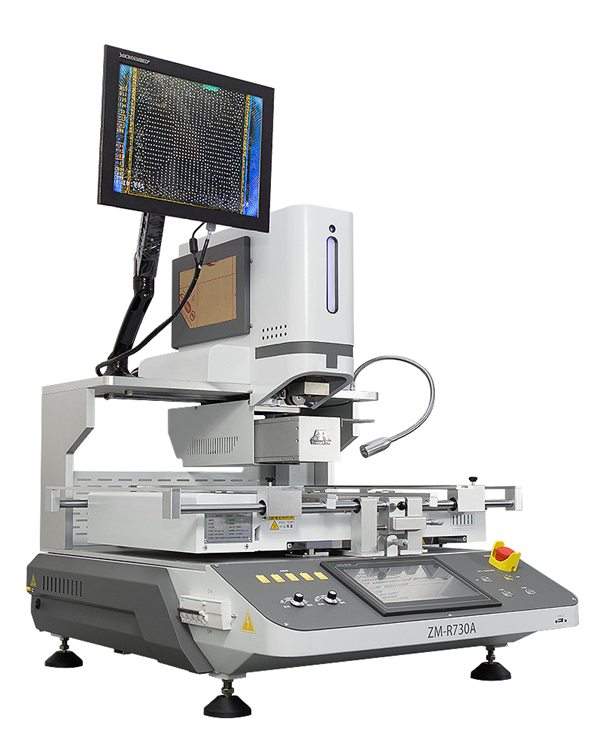

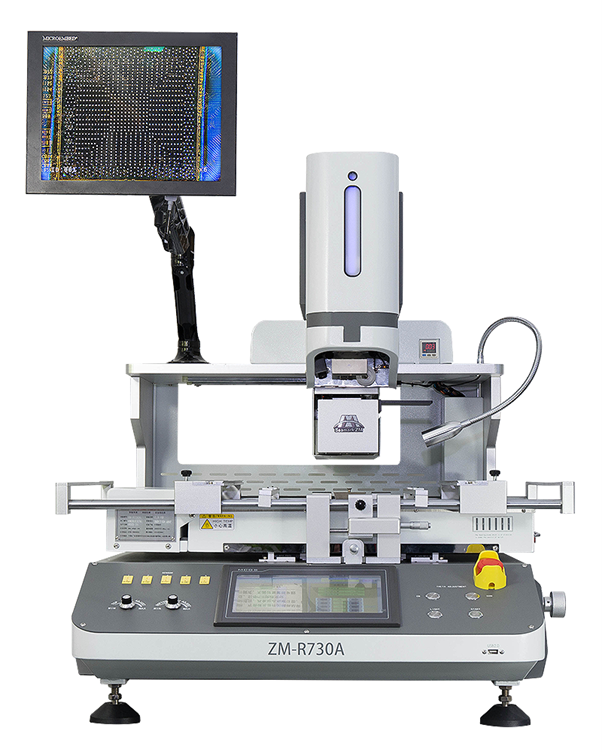

ZM-R730A Large Board BGA Rework Station

Please contact us for a price estimation.

Request Price

General Specifications

Power Supply AC380V±10% 50/60HZ
Power 7.75KW(Max)，Top heater(1.45KW)
Bottom heater (1.2KW)，IR Preheater (4.8KW),
Other(0.3KW)
PCB Size 632*520mm(Max);6*6mm(Min)
BGA Chip Size 80*80mm(Max);3*3mm(Min)
IR Heater Size 570*435mm
Temperature Sensor 5 pcs
Operation Method 10" HD touch panel (1080P 16:9)
Control System Panasonic PLC + Temperature control module
Display System 15" HD industrial display (1080P 16:9）
Alignment System 2 Million Pixel HD digital imaging system, automatic optical zoom with laser red-dot indicator
Vacuum Adsorption Automatic
Alignment Accuracy ±0.01mm
Temperature Control K-type thermocouple closed-loop control with accuracy up to ±1℃
Feeding Device Yes
Positioning V-groove with universal fixture
Dimensions L1000*W835*H960mm
Weight 130.5KG
