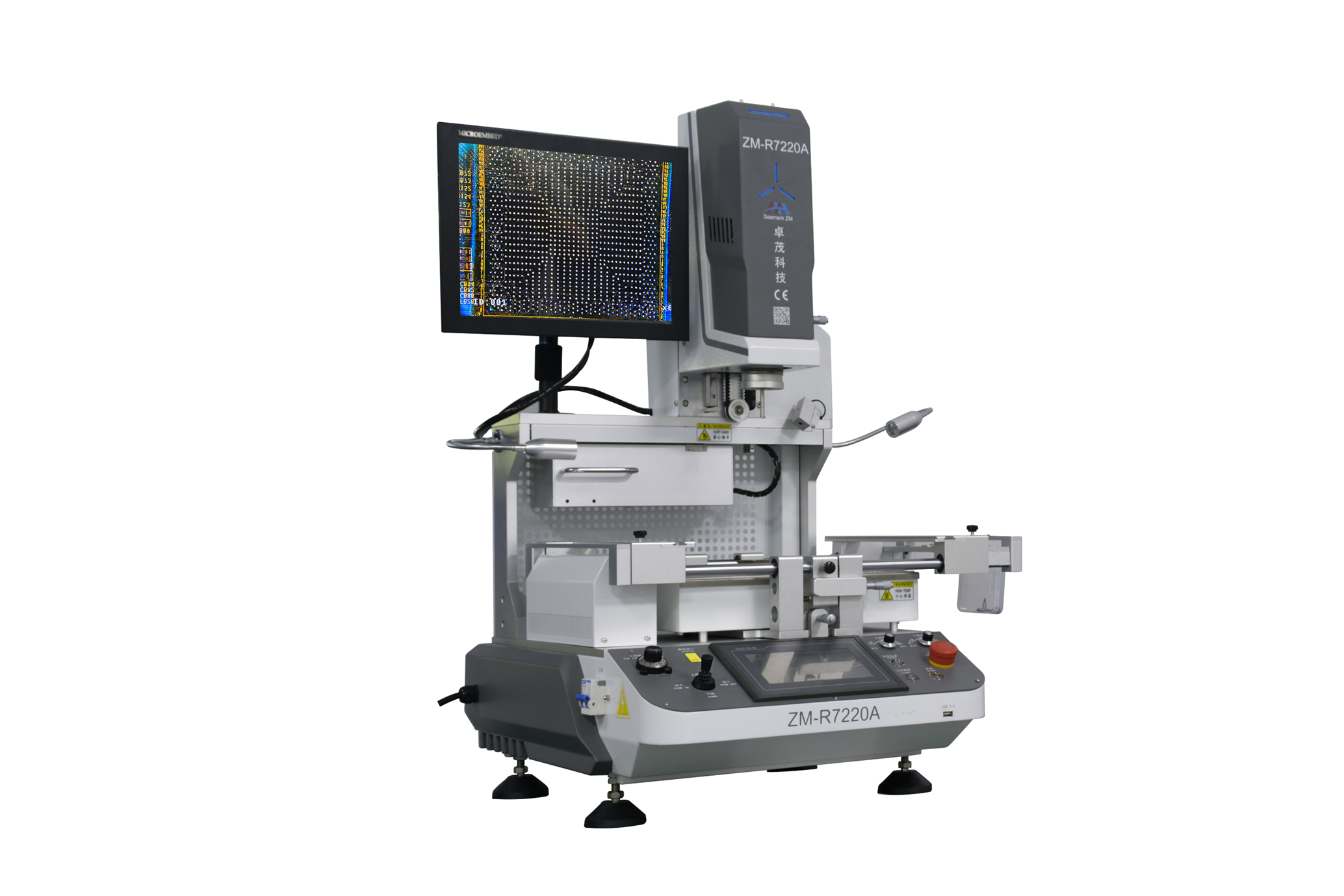

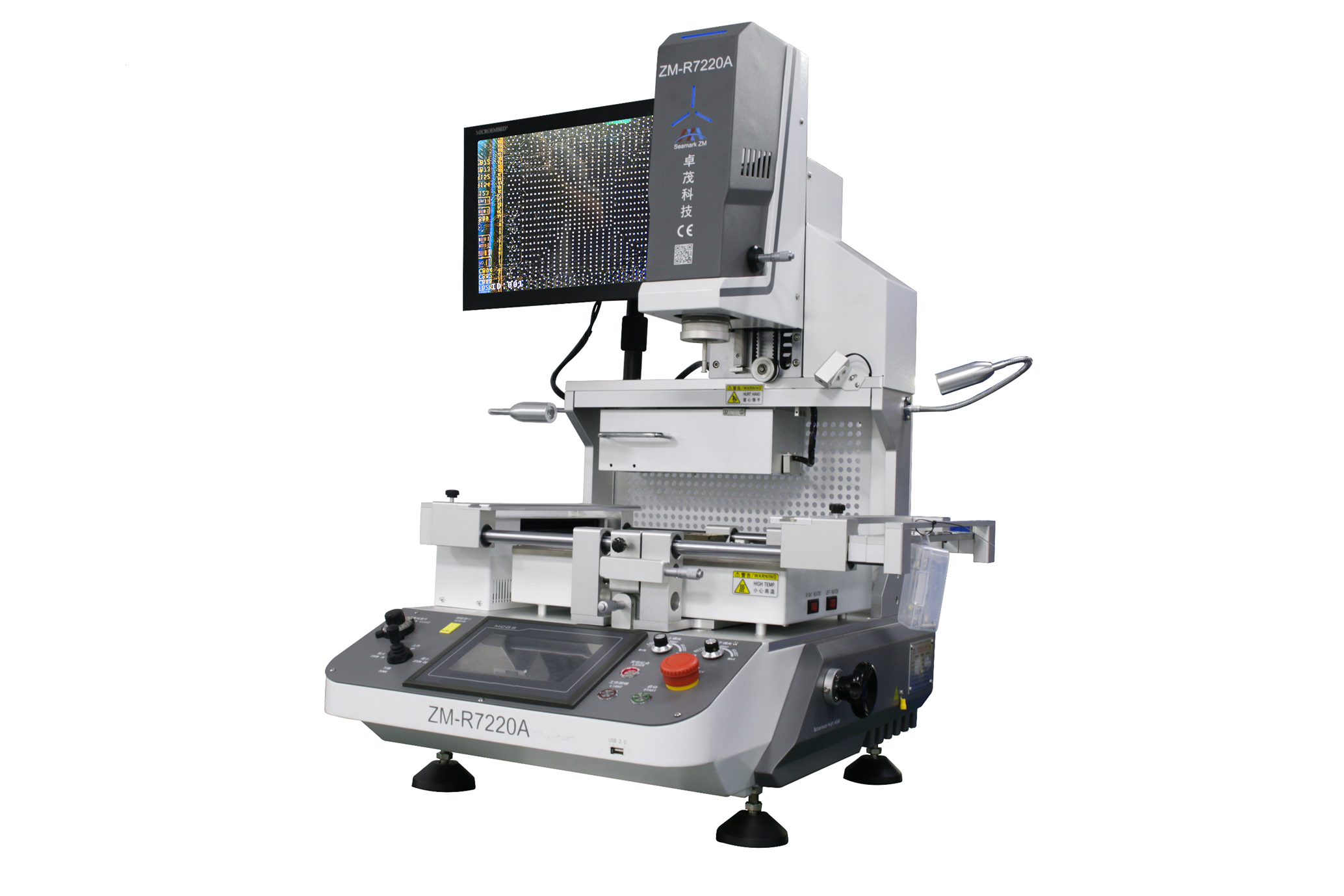

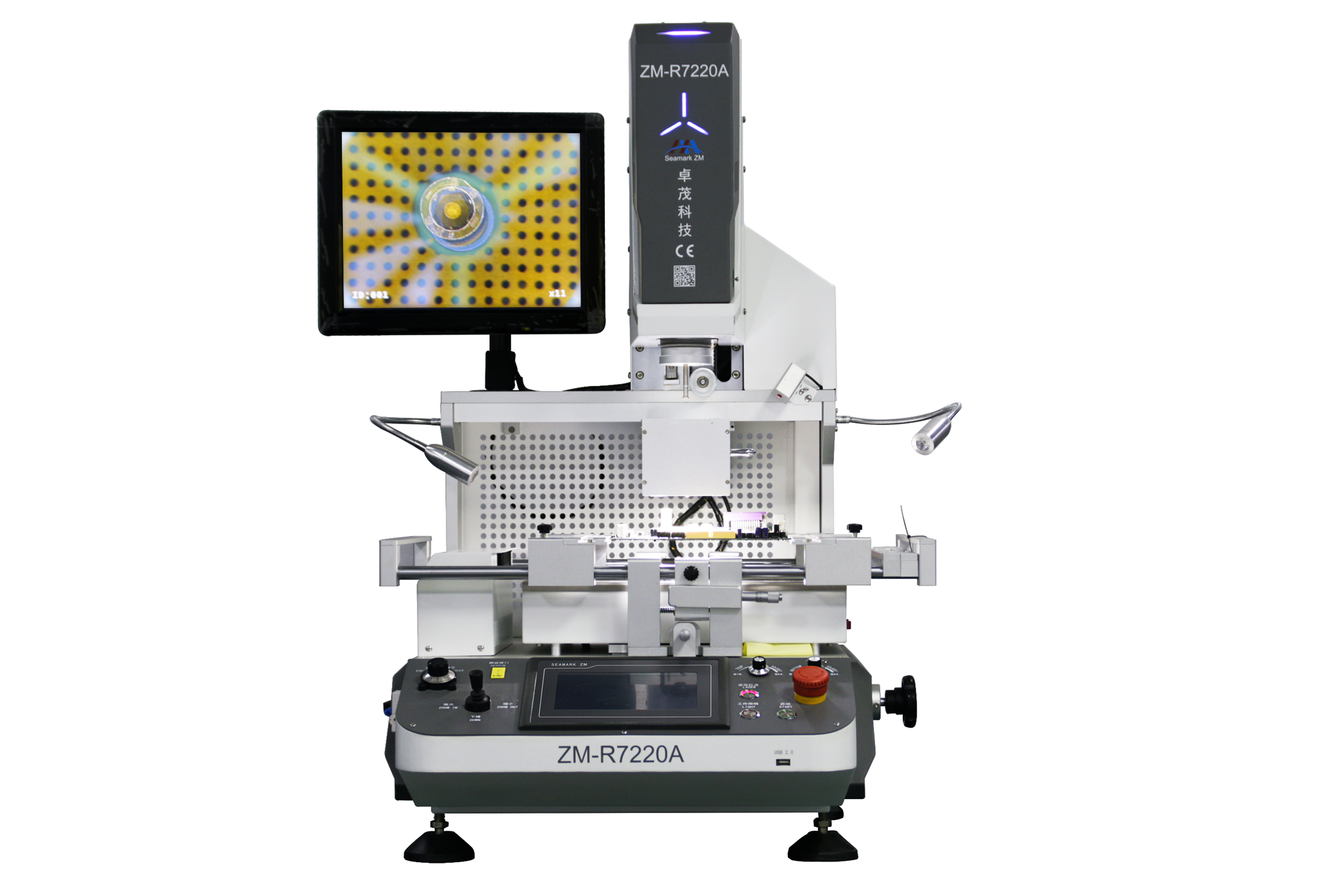

ZM-R7220A Infrared BGA Rework Station

Please contact us for a price estimation.

ZM-R7220A is an intelligent BGA rework station with real-time temperature monitoring, optical alignment system, rapid heating, and cooling.

Request Price

General Specifications

Power Supply AC220V±10% 50/60HZ
Power 5.65KW(Max)，Top heater(1.45KW)
Bottom heater (1.2KW)，IR Preheater (2.7KW),
Other(0.3KW)
PCB Size 412*370mm(Max);6*6mm(Min)
BGA Chip Size 60*60mm(Max);2*2mm(Min)
IR Heater Size 285*375mm
Temperature Sensor 1 pcs
Operation Method 7" HD touch screen
Control System Autonomous heating control system V2（software copyright）
Display System 15" SD industrial display (720P front screen）
Alignment System 2 Million Pixel SD digital imaging system, automatic optical zoom with laser red-dot indicator
Vacuum Adsorption Automatic
Alignment Accuracy ±0.02mm
Temperature Control K-type thermocouple closed-loop control with accuracy up to ±3℃
Feeding Device No
Positioning V-groove with universal fixture
Dimensions L635*W633*H850mm
Weight 76KG
