ZM-R5860

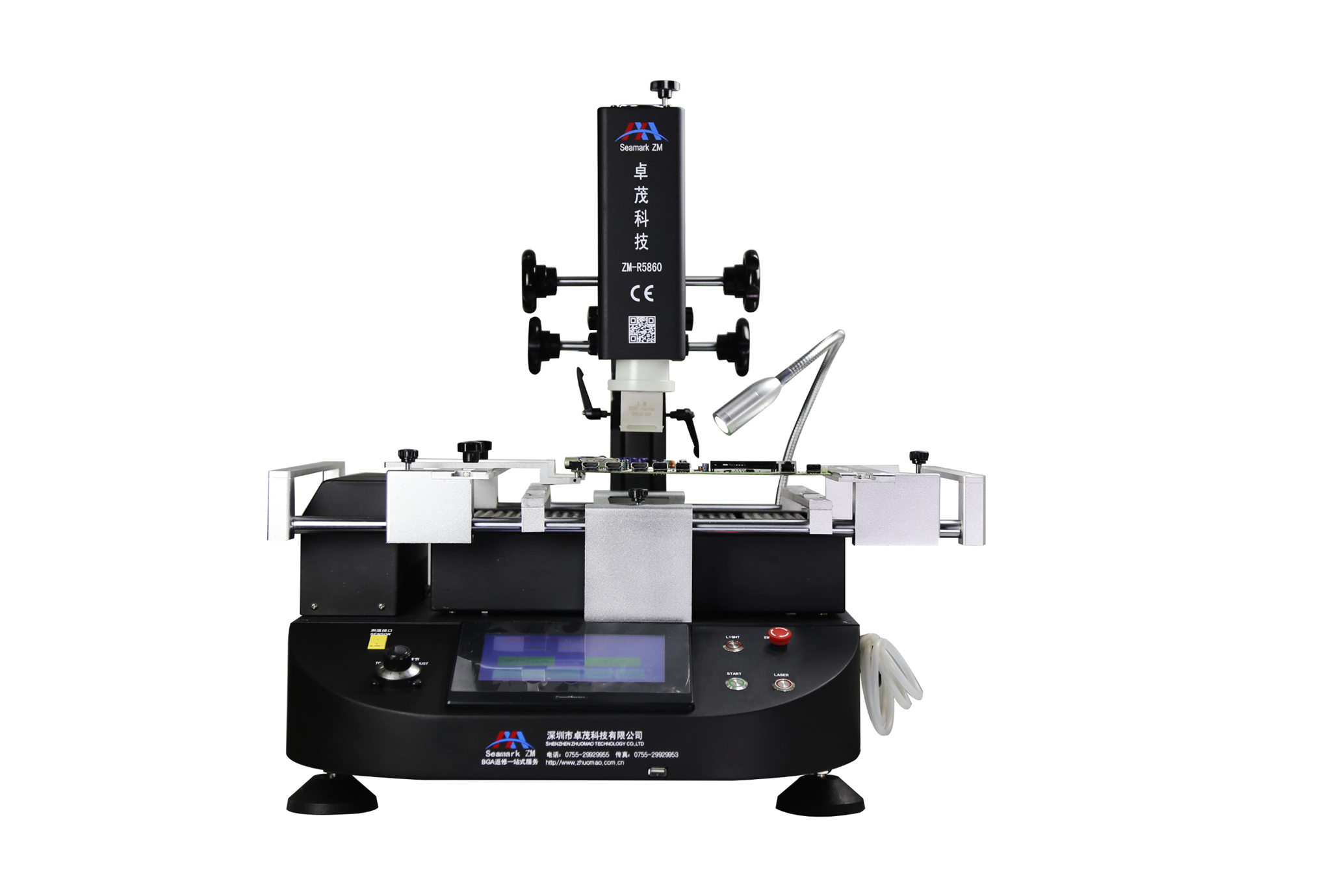

ZM-R5860 Hot Air BGA Rework Station

Please contact us for a price estimation.

Three-temperature zone Independently control, convection hot air heating, lower temperature zone height-adjustable, high-precision autonomous control system, high-precision K-type thermocouple with accuracy up to ± 3 ℃, dynamic APR multi-loop closed-loop control selective reflow process. Imported high power constant current integrated cooling fan.

Request Price

General Specifications

Power Supply AC220V±10% 50/60HZ
Power 5.0KW(Max)，Top heater(0.8KW)
Bottom heater (1.2KW)，IR Preheater (2.7KW),
Other(0.3KW)
PCB Size 410*370mm(Max); 10*10mm(Min)
BGA Chip Size 40*40mm(Max); 10*10mm(Min)
IR Heater Size 375*285mm
Temperature Sensor 1 pcs
Operation Method 7" HD touch screen
Control System Autonomous heating control system V1（software copyright）
Alignment System Laser dot
Vacuum Adsorption Manual
Temperature Control K-type thermocouple closed-loop control with accuracy up to ±3℃
Positioning V-groove with universal fixture
Dimensions L635*W620*H655mm
Weight 43.5KG
